Look out for Carpentry Laminate Joint Lines

Laminates form a vital part of all carpentry works. It is the material glued onto the bare plywood to give carpentry the sleek final finishing look.

Most laminate sheet, like the one below, are 8 ft by 4 ft (2.4m by 1.2m), and there’s a reason why we share this dimension.

The joint line that these laminates might create is one of the major source of “conflicts” or “workmanship issues” between IDs & homeowners.

Let’s unpack why.

Watch our tiktok channel if you lazy to read.

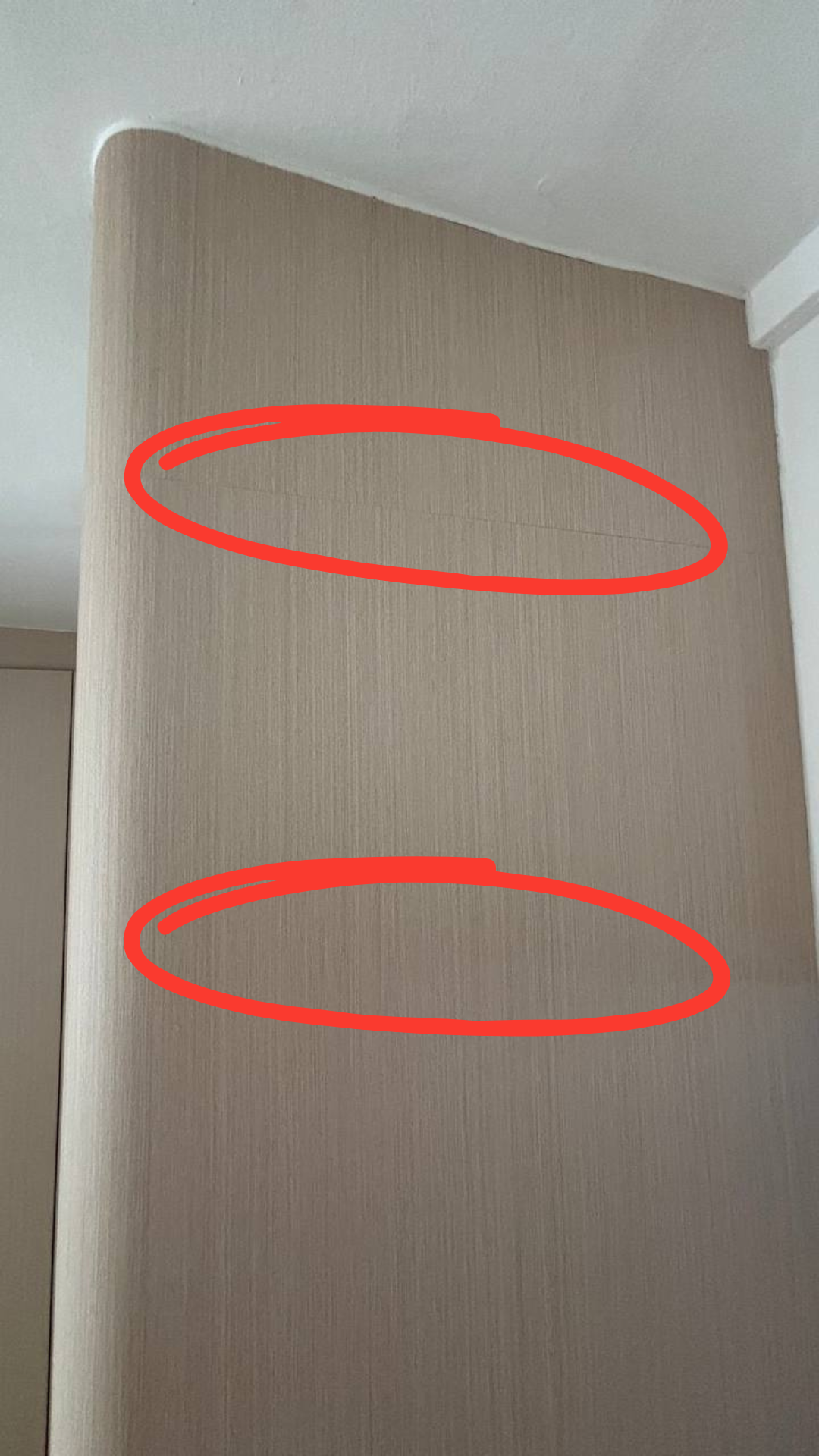

Joint line happens when two separate pieces of laminate are pasted beside each other, creating this thin but visible line. Some homeowners absolutely cannot stand them – it’s like a visual itch that won’t go away.

From far, the joint line might not seem visible. But zooming in and in-person, you can see the line appearing. The joint line is a result of a bottom piece of laminate joining the top piece.

Now, you might be thinking: “Why not just use a full piece?” Here’s why we shared the full laminate sheet dimensions at the start.

A full sheet has a length of 2.4m, and a width of 1.2m. This means that any carpentry that exceeds this dimension, will have a joint line.

Common items include wardrobe side panels and feature walls.

In fact, anything that is built full-height from bottom of floor to the top runs this risk.

HDB & Condo Height vs Laminate

Reason being height of HDBs are 2.6m, while that of condos are usually 3m and above. This exceeds the 2.4m (the standard laminate length) - so the carpenter has to join two pieces together, which results in a visible joint line.

This detail is often not talked about, until the carpentry is fabricated, and it is too late.

For homeowners craving that perfection in carpentry, tell your ID upfront that you don’t want joint lines. There are some laminate sheet which go to 3m. There are ways to “hide” it through the doors.

Otherwise, most carpenters will just proceed with this most efficient and cost-effective approach, helping them to reduce laminates wastage, and this is not wrong of them.

If the ID confirms that you will have joint line, then you have to decide if you prefer it at the top or the bottom. Some people prefer it at the top so it’s less visible. Others prefer the bottom for similar reasons.

But here’s the truth: most people stop noticing it after a while. It’s one of those things you obsess over before renovation, but forget exists once you start living in your home.

But if you’re super particular about having a seamless, joint-free finish, please make sure you raise it early with your ID.
